Passenger Elevator
Ittehad Passenger Elevators: Comfort & Reliability
Ittehad Passenger Elevators are crafted to provide a smooth, safe, and dependable vertical travel experience. Built with advanced technology and precision engineering, our elevators prioritize passenger comfort while ensuring maximum safety. Perfect for both residential and commercial buildings, they combine sleek, modern aesthetics with strong, long-lasting performance. With Ittehad Elevator, you get a premium solution that delivers unmatched reliability, style, and efficiency for your building.
Advantages of : Ittehad Passenger Elevators
Ittehad Passenger Elevators are engineered to deliver exceptional performance, safety, and comfort, making them ideal for both residential and commercial buildings. Designed for a smooth and quiet ride, our elevators enhance the overall passenger experience while ensuring dependable vertical transportation.
Equipped with advanced safety features such as modern braking systems and emergency protocols, they provide reliable protection at every level. Their sleek, modern design integrates effortlessly with diverse architectural styles, while the energy-efficient technology helps reduce long-term operational costs.
Innovative Passenger Lifts for Every Need
Ittehad Elevator offers a wide range of passenger lifts with varying capacities and speeds, perfectly suited for both new constructions and existing buildings, whether small or large. Our solutions are designed to serve diverse environments, including residential complexes, office buildings, hotels, and shopping centers, ensuring safe and efficient vertical mobility.
Equipped with state-of-the-art technology, our latest passenger lifts feature a 32-bit microprocessor-based Monarch controller, a Permanent Magnet Synchronous Gearless Traction Machine, and a VVVF Door Control System. These innovations ensure smooth operation, minimal maintenance, and reduced energy consumption, while the elegant cabin design enhances the overall travel experience.
Every lift from Ittehad Elevator can be fully customized — from system components and technical specifications to cabin size, design, and finishes — allowing us to deliver solutions tailored to your building’s unique requirements. For complete details on cabin dimensions and specifications, please refer to our technical data.
Gearless Drive System
Our passenger lifts utilize a Permanent Magnet Gearless machine, which features an energy-efficient, compact design and exceptional performance. This technology enables the lift to achieve over 40% energy savings.
Monarch Control Unit
Our passenger lifts use a Monarch VVVF inverter with vector-controlled digital closed-loop technology. Its modular microcomputer control ensures faster operation, smooth motion, and enhanced efficiency.
Door Drive System
Our passenger lifts use a quiet, lightweight door inverter with variable-frequency speed control. It auto-adjusts torque for smoother, efficient, and more reliable door operation.
Ittehad Elevators – Delivering Excellence & Every Floor
Machine Room Passenger Elevator
Machine Room Passenger Elevator
Roomless Passenger Elevator
Gold Beautiful Cabin
Gold Shade Elevator Manufacture
Traction machine Elevator
Passenger Elevator
High Quality Elevator
Smart Lift Solutions for Homes & Businesses
Experience reliable, stylish, and efficient elevators designed to perfectly suit both residential and commercial needs.
Construction Layout Plan
SMR PASSENGER ELEVATOR
Small Machine Room Elevator:
The high -efficiency and low -speed permanent magnet synchronous gear traction machine is adopted. Compared with the gear elevator with the same load level, it saves 35%of energy.
Save Space:
In the design of the small machine room, the machine room is just the upward extension of the shaft, coupled with the specially designed small volume control cabinet, improves the space utilization rate, greatly saves the area of the machine room, and reduces the cost of building
Flexible Design:
The optimized design of the structure can be more flexible, free, and diverse, perfectly showing the architectural style. Improve installation efficiency. The overall installation process is more convenient and fast. Whether it is initial or updated, it can be easily achieved.
MRL PASSENGER ELEVATOR
Machine Roomless elevator saving the machine room space on the top of the shaft, brings greater flexibility to the design of the building
Adopt advanced design concepts and mature control technology to provide more choices for small high -rise buildings. The machine roomless control system to optimizing the control algorithm and data structure, greatly improved the speed of computing, more stable and more efficient. Streamline the control system components, reduce the wiring of about 25% of the control system, and make the system integrate and modularize, and it is easier to install and test. Remove the redundant components of the control system, reduce the main faulty sources during the operation of the system, and significantly improve the reliability of the system operation.
Synchronous raceless traction machines for machine roomless are used, which greatly saving shaft space, excellent operation performance, and stronger power.

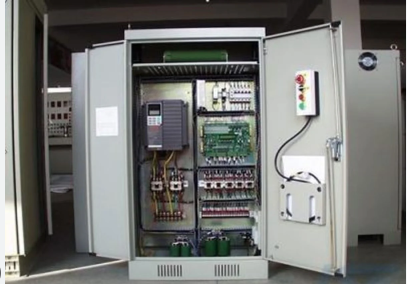

Control System:
1. Increase the new national standard board UCMP to prevent the car from moving accidentally
2. Integrated main control system, improve the degree of system integration, reduce the main faulty sources in the operation of the system, and make the system more reliable.
3. CANBUS+bus technology, the communication capacity and speed increased significantly, and the anti -interference ability is enhanced.

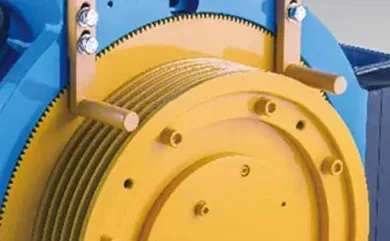

Traction Machine:
Permanent magnet synchronization gearless traction machine. It uses high -performance permanent magnet materials and special motor structures to fully integrate coaxial transmission technology, digital frequency conversion technology, high transmission efficiency, and low energy loss. High torque density design, optimized wheel groove design, improve ride comfort. High -loading design, large axis load, effectively reducing the running of the elevator abnormally jitter or noise, making the operation more stable. No bracket brake, fast response, high reliability.
The high -performance shock absorption material is applied between the traction machine host and the base, which significantly reduces the vibration generated by the traction machine through the wire rope to the car.
CANBUS +Bus Technology:
The communication capacity and speed increased significantly, and the anti -interference ability is enhanced.
The permanent magnetic frequency portal configured by the elevator uses the latest stepless speed -controlled frequency -controlled door -drive system to control the opening and closing vector control, closed -loop vector control, real -time speed feedback, and the accuracy of speed regulation reaches 0.1%. The latest permanent magnet synchronous motor and the latest stepless speed regulating frequency -controlled door -driven system control, energy conservation reaches more than 60%. Enter a wide voltage belt design with 220V ± 20%input voltage, high adaptability. The main mechanical parts adopt standardized design, strict three -dimensional model construction, finite element analysis and other design verification. The mechanical structure and control system have passed the reliability testing, abnormal state test, and functional test verification of the component. Abnormal state testing, functional testing, and reliability test verification of 3 million operations ensure the reliability of the product. Unique obstacle point memory protection; door knife open/closed curve adjustment; synchronous/asynchronous door knife selection; slow shutdown door shutdown; encoder fault protection; clamping the detection torque optional function, etc. At the same time, the door machine has the characteristics of smooth operation, high comfort, and low noise.
